CAD-OPTIMIZED COMPUTERS

AEC Professionals and the MSPs Who Provide IT Services to the AEC Industry Choose ClearCube Computers.

  • Long-lasting, CAD-optimized PCs for lower total cost of ownership (TCO)
  • Performance that beats virtual GPUs
  • Rackmount and blade PCs to keep the processing and data in IT
  • Desktop PCs for boutique firms and individuals
  • Thin clients and mini PCs for connecting back to centralized computers, either virtual or physical
  • All are designed with AEC industry input and to work with CAD software, including Revit, AutoCAD, SolidWorks, etc.
  • We welcome your requests for custom configurations and builds

CAD
“Elite” RM

Starting at $1999

1U WORKSTATION BUILT FOR THE MOST DEMANDING CAD POWER USERS.

More Details

Designed to allow the most demanding CAD designers to reach maximum productivity. Our CAD “Elite” rackmount workstation will accommodate up to an NVIDIA RTX A6000 graphics card.

Flexible build-out options allow for memory, storage, and drives to suit your needs. For example, you can opt for two removeable hard drives and a CD drive, if desired. Your top designers will not be disappointed in the performance of this workstation, and you won’t be worried that your top talent is held back from peak performance.

Optimized for design & rendering using Revit, AutoCAD, SolidWorks, Autodesk 3ds Max, and others.

PROCESSOR: i9-12900
STORAGE: M key 2280 | sata 2.5″ x 2
MEMORY: DDR4 3200 x 2
GPU: Up to NVIDIA RTX A6000

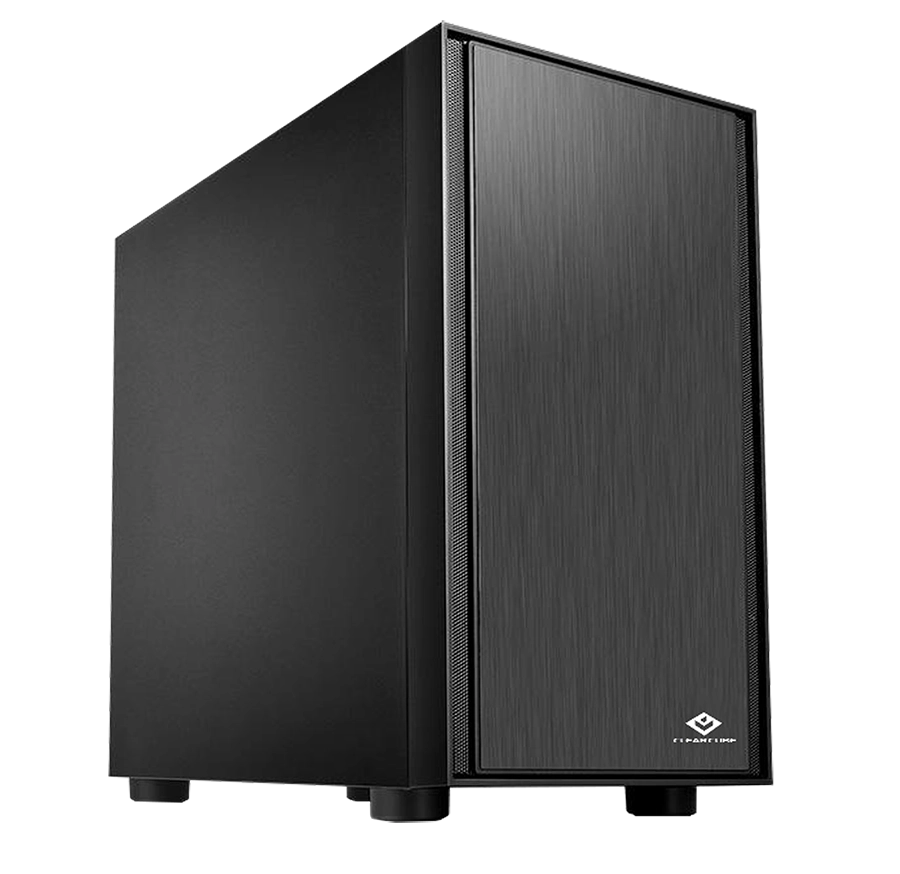

cad "ELITE" DS

Designed to allow the most demanding CAD designers to reach maximum productivity. Our CAD Elite DS workstation is a deskside tower for individuals or boutique firms who prefer to have the PC beside or nearer to the user. The CAD Elite DS will accommodate up to an NVIDIA RTX A6000 graphics card. The larger motherboard allows for additional expansion slots and a greater memory capacity, making this a platform that can be expanded to meet greater needs in the future.

Flexible build-out options allow for memory, storage, and drives to suit your needs. For example, you can opt for two removeable hard drives and a CD drive, if desired. Your top designers will be getting industry-leading performance that will allow them to achieve maximum productivity.

Optimized for design & rendering using Revit, AutoCAD, SolidWorks, Autodesk 3ds Max, and others.

PROCESSOR: i9-13900k
STORAGE: M key 2280 | sata 2.5″ x 2
MEMORY: DDR5 3600-4400MHz
GPU: Up to NVIDIA RTX A6000

More Details

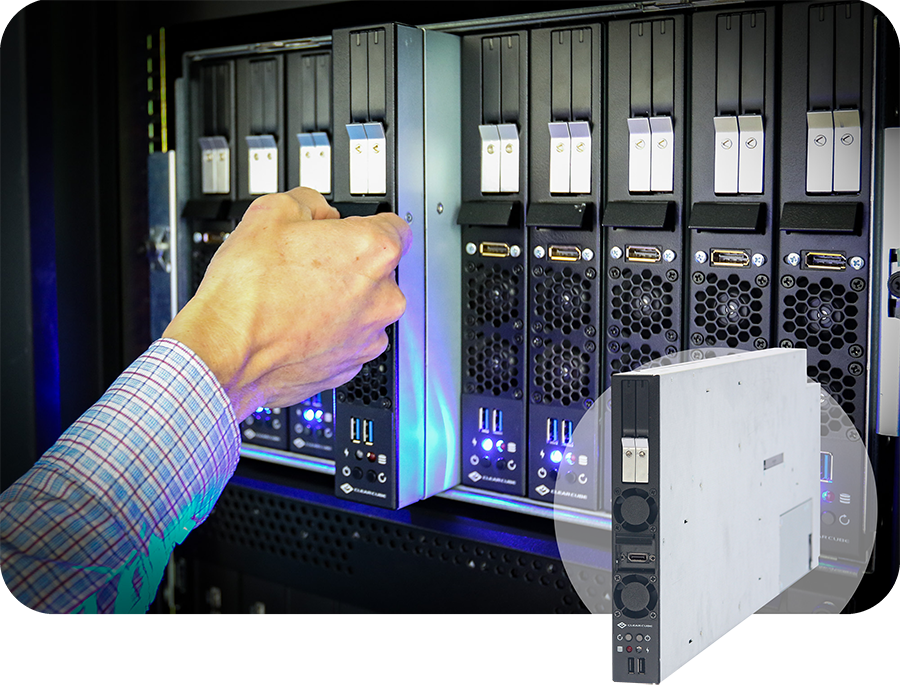

0.6U blade workstation built for CAD performance & density.

Our most popular CAD workstation is our CAD “Pro” model. This blade workstation is 0.6U in size, fitting 10 blades in a 6U chassis equipped with redundant AC power supplies. These blade workstations are widely deployed for architects, engineers, and designers who find the performance is superior to virtual GPUs and traditional PCs. Optimized for the most common CAD software packages, these blades are long-life, reliable PCs that allow heavy CAD users to maintain full productivity.

Optimized for design & rendering using Revit, AutoCAD, SolidWorks…

PROCESSOR: i9-12900
STORAGE: M Key 2280 | SATA 2.5″ x 2 | SATA 2.5″ Removable x 2
MEMORY: DDR4 3200 x 2
GPU: NVIDIA RTX A4000

CAD  “PRO”

“Ridiculous performance from anywhere!”

–Customer quote
(MSP serving AEC firms)

More Details
AEC White Paper

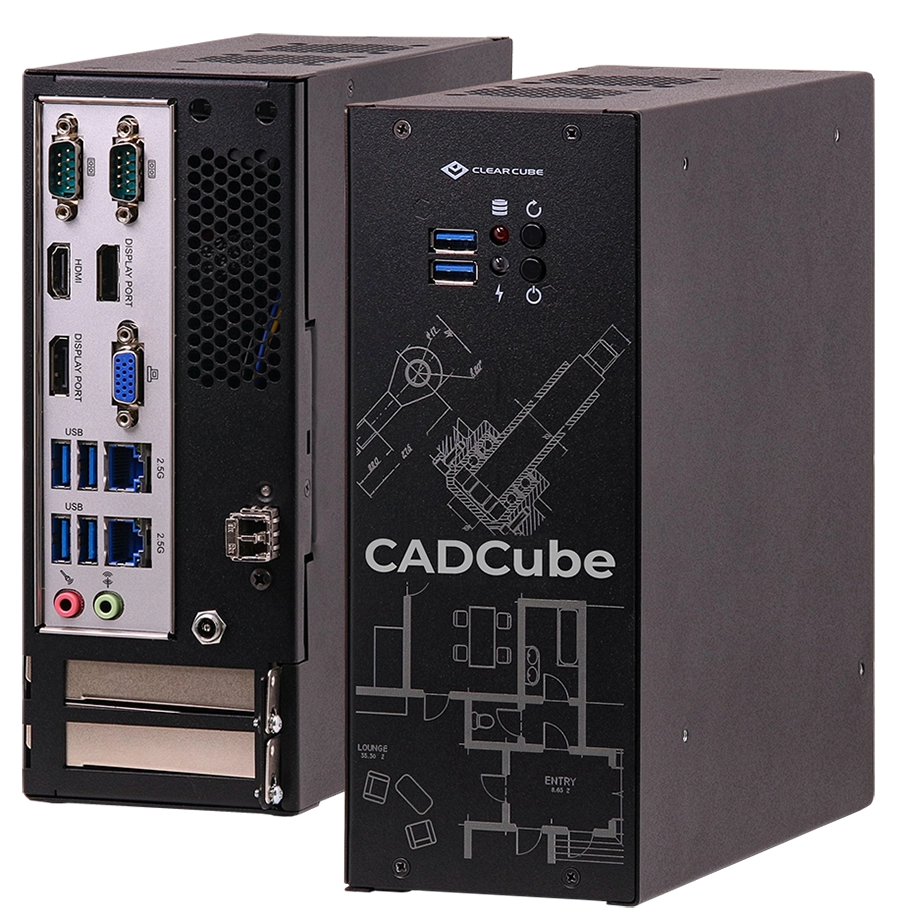

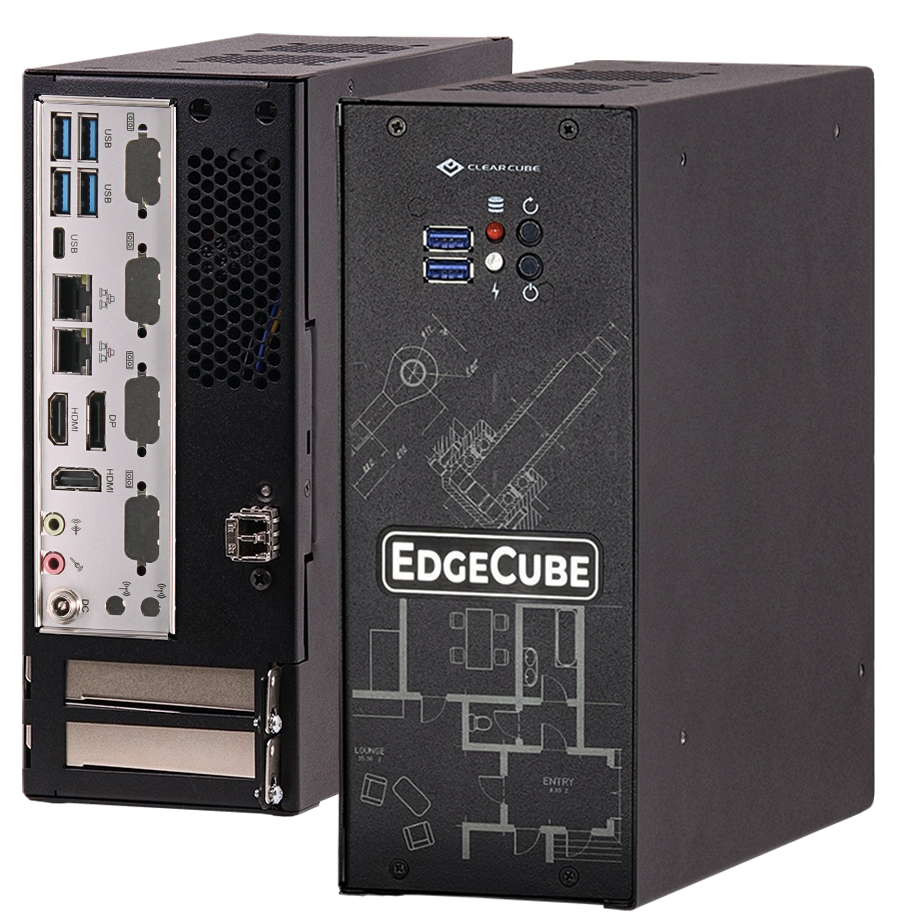

cad "CUBE"

Starting at $999

Small form factor workstation built for CAD users.

This small form factor PC is our EdgeCube that is configured for CAD users who need a powerful, yet compact form factor desktop PC. Despite its small size, it delivers robust performance, and has tremendous configuration flexibility. The CAD “Cube” can accommodate a GPU up to the NVIDIA RTX A4000 Ada. Configuration options for memory, storage, GPU, and network connections are available to make this computer ideal for your environment. Customers can deploy the CAD “Cube” as a standalone PC for CAD work, or it can be used as a “thick” client to connect to a virtual or physical workstation in the cloud or the data center.

PROCESSOR: i3-12100 / i5-12600 / I9-12900
STORAGE: 2280 M Key | 2242 M Key | 2.5" Drive
MEMORY: 64 GB
GPU: NVIDIA RTX 4000 SFF Ada

More Details
cad "connect"

Capable thin clients for connecting to remote CAD workstations. Ideal for connecting to remote or virtual GPU computers.

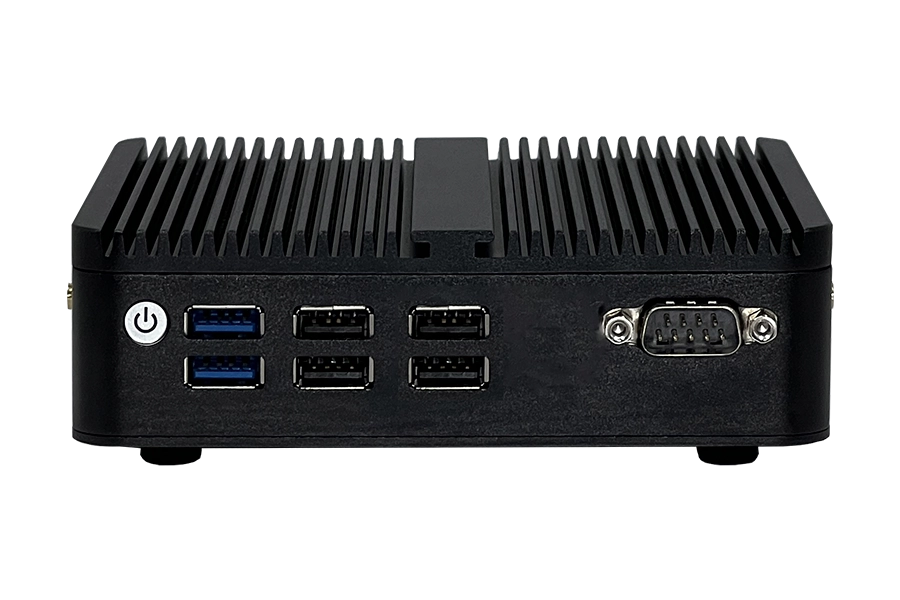

CD8864 (fanless)

PROCESSOR: Elkhart Lake J6426
STORAGE: SATA 2.5 | mSATA
MEMORY: DDR4 8GB
GPU: Intel® UHD Graphics

More Details

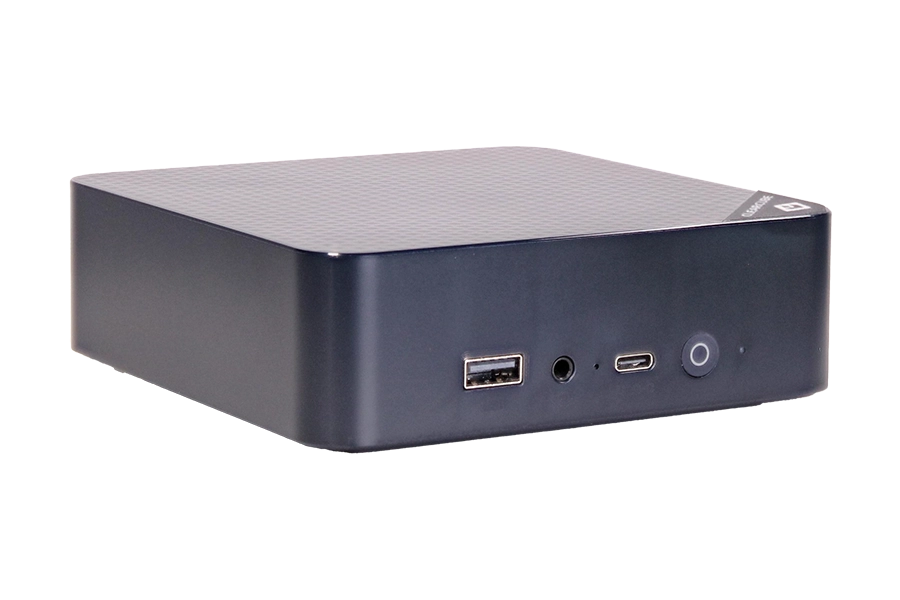

CD8809

PROCESSOR: Intel Alder Lake N150

STORAGE: M.2: 500GB | SATA 2.5″
MEMORY: 2 x SO DIMM DDR4 16GB Recommended
GPU: Intel® UHD Graphics

More Details

Case Studies & White Papers

Blade PCs Outperforming Virtual GPUs

A Case Study on the Triumph of Blade Computers Over Virtual GPUs for CAD-Intensive Users.

See Case Study

Huckabee Architecture, Inc.

Solution for one of the Nation’s Top Architecture and Engineering Firms.

See Case Study
