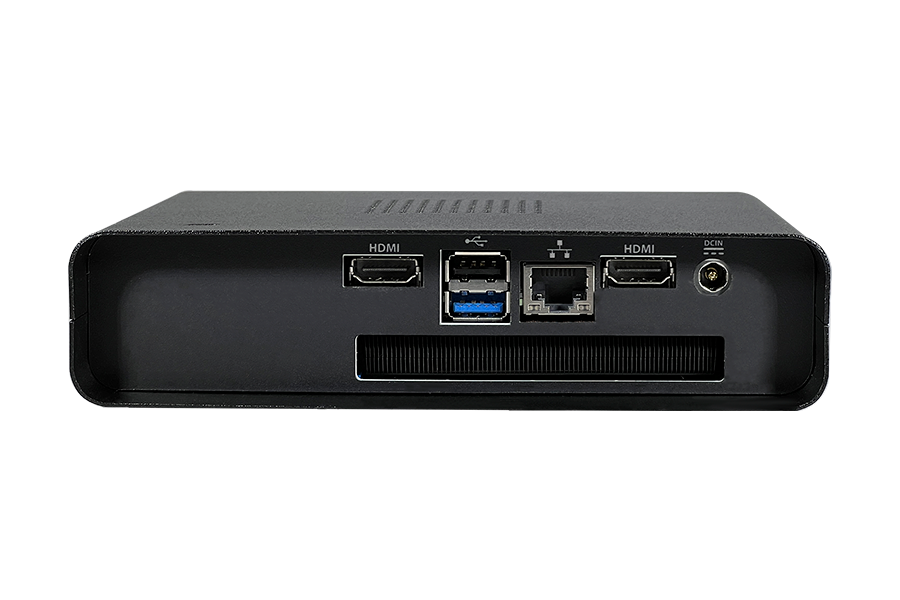

DTi51222-24 rear view
View Data Sheet
go to Support

SKU:

G09i31522 - G09i31542 - G09i51522 - G09i51542 - G09i71522 - G09i71542

No matter where you are in your decision making process.
We are ready to help you!

Schedule a 15-minute consultation call.

DTi51522/42

15th Gen i3/i5/i7 Mini PC NUC Quad 4K. Perfect for demanding mission and business critical environments

  • TPM 2.0 technology provides built-in security, remote manageability, faster productivity
  • Intel 15th Generation Core i3 100U, i5 210H, i7 240H Processors and Intel Iris® Xe Graphics
  • Dual NIC solution
  • Compact small form factor reduces desktop footprint
  • Dual 4K or Quad 4K monitor support for high performance multimedia

Technical Specs

CPU / Processor

•Intel Core 15th i3 100U (6C/8T, 1.2 GHz up to 4.7 GHz, 15W, TPM 2.0, Secure Boot)
•Intel Core 15th i5 210H (8C/12T, 2.2 GHz up to 4.8 GHz, 45W, TPM 2.0, Secure Boot)
•Intel Core 15th i7 240H (10C/16T, 2.5 GHz up to 5.2 GHz, 45W, TPM 2.0, Secure Boot)

Video

Max Resolution: 4 x 4K
Recommended Resolution: 4 x 4K

GPU

External Ports

2 x HDMI 2.1
2 x Thunderbolt 4 (Type C) ** On 42 version **
USB Front count (Optional Add-On)
1 x USB 3.2 Gen2x2 Type C
1 x USB 3.2 Gen2 Type A
1 x USB 3.2
1 x USB 2.0
1 x RJ45 2.5Gbps
1 x SFP 1Gbps (Optional)
WiFi (Optional)
10Gbps RJ45 Optio

Internal Ports

USB Header
M Key 2242 (Gen 4),
M Key 2280 (Gen 5),
E Key 2230

Network

1 x RJ45 2.5Gbps
1 x SFP 1Gbps (Optional)

Memory

Type: DDR5 – 6400 x 2
Recommended: 32GB
Max: 96GB

Storage

2280 M Key
2242 M Key

Operating System

Windows 10
Windows 11
Linu

Dimensions

1.5″ (H) x 5″ (L) x 6.5″ (W

Rack Density

NA

Other

NA
