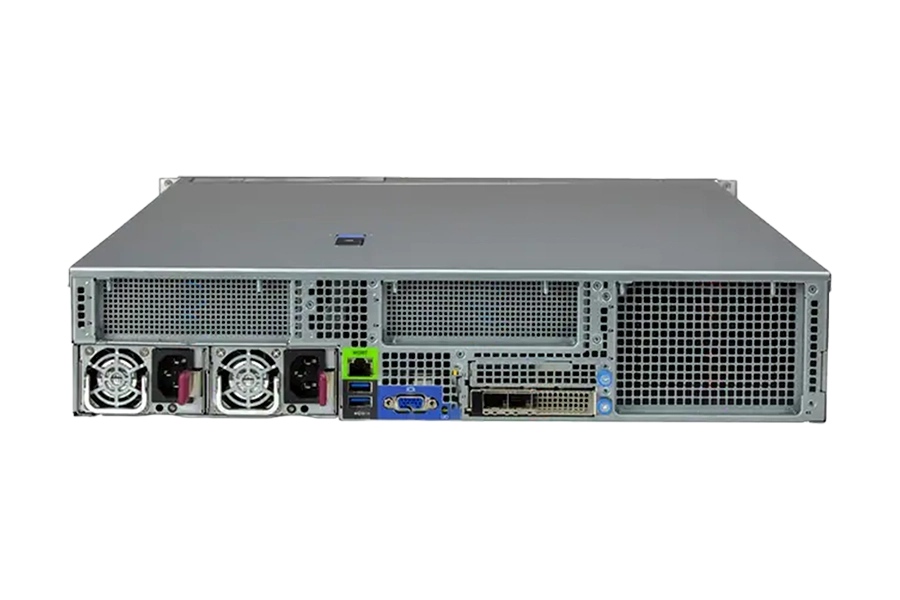

M4221D_Rearview
SYS-221H-TNR_ANGLE_2_OPEN
SYS-221H-TN24R_TOP_OPEN_2
View Data Sheet
go to Support

SKU:

M4221D Blade PC Workstation - G094221D

No matter where you are in your decision making process.
We are ready to help you!

Schedule a 15-minute consultation call.

Rack Mounted Workstation M4221D

Outstanding Performance 2U Rack-Mounted Computer Solution for High-End CAD, GIS, and 3D Graphics Power User

Key Benefits:

  • 2U Platform
  • 12×2.5” NVME/SATA drive
  • 32 memory slots (up to 8TB ECC RAM)
  • Dual 10G Base-T RJ45
  • 3 PCIe slots (2 FHFL x16 + 1 LP x8)  — Combinations
    • NVIDIA 4000 Series + 10GE + Dual Host card
    • NVIDIA 4000 Series + Quad Host Card
    • Double Wide GPUs NVIDIA 5000/6000 Series + Dual host card
    • NVIDIA 1000 Series + quad host card
  • IPMI 2

Technical Specs

CPU / Processor

Intel 4th Gen Xeon Scalable
• Xeon 4410T (10C/20T, 2.7 GHz up to 4.0 GHz, 150W, 26.5MB Cache) TPM 2.0, Secure Boot
• Xeon 4416+ (20C/40T, 2.0 GHz up to 3.9 GHz, 165W, 37.5MB Cache) TPM 2.0, Secure Boot
• Xeon Gold 6448 (32C/64T, 2.1 GHz up to 4.1 GHz, 225W, 60MB Cache) TPM 2.0, Secure Boot

Video

GPU

GPU: Up to NVIDIA 6000 Series

External Ports

1 x VGA + add on video card
2 x USB 2.0
2 x 10Gbps (AIOM)

Internal Ports

2 x M Key 2280/22110
SATA Header
SATA Port

Network

PCoIP 1GbE Copper (Optional)
10GbE Option

Memory

DDR5 ECC 4800 x 32
Recommended: 512GB
Max: 8192GB

Storage

2 x M.2 2280/22110
8 x SATA 2.5” Removable

Operating System

Windows 10, Windows 11, Linux

Dimensions

3.2″ (H) x 29.1″ (L) x 17.2″ (W)
2U

Rack Density

NA

Other

NA
