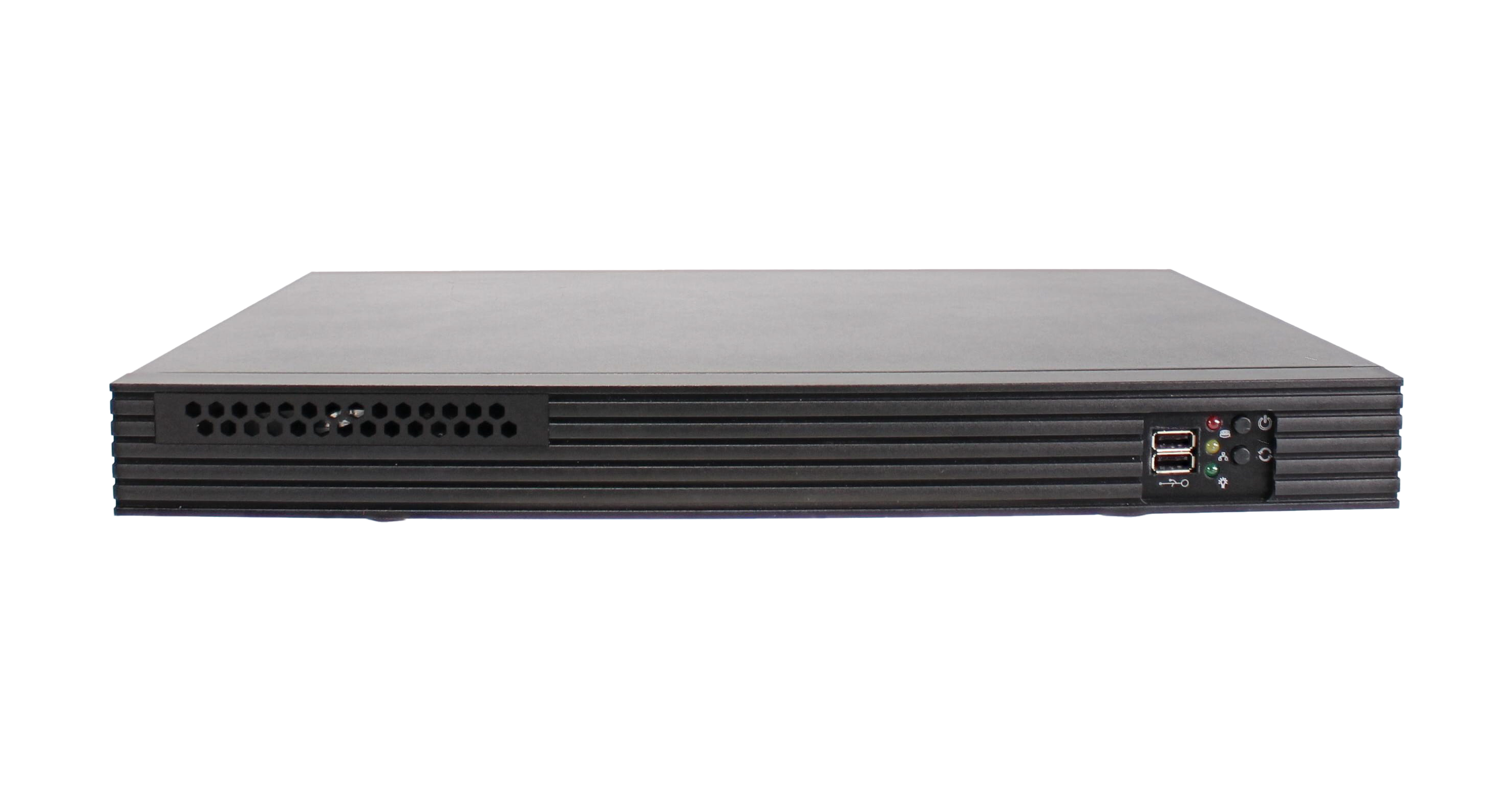

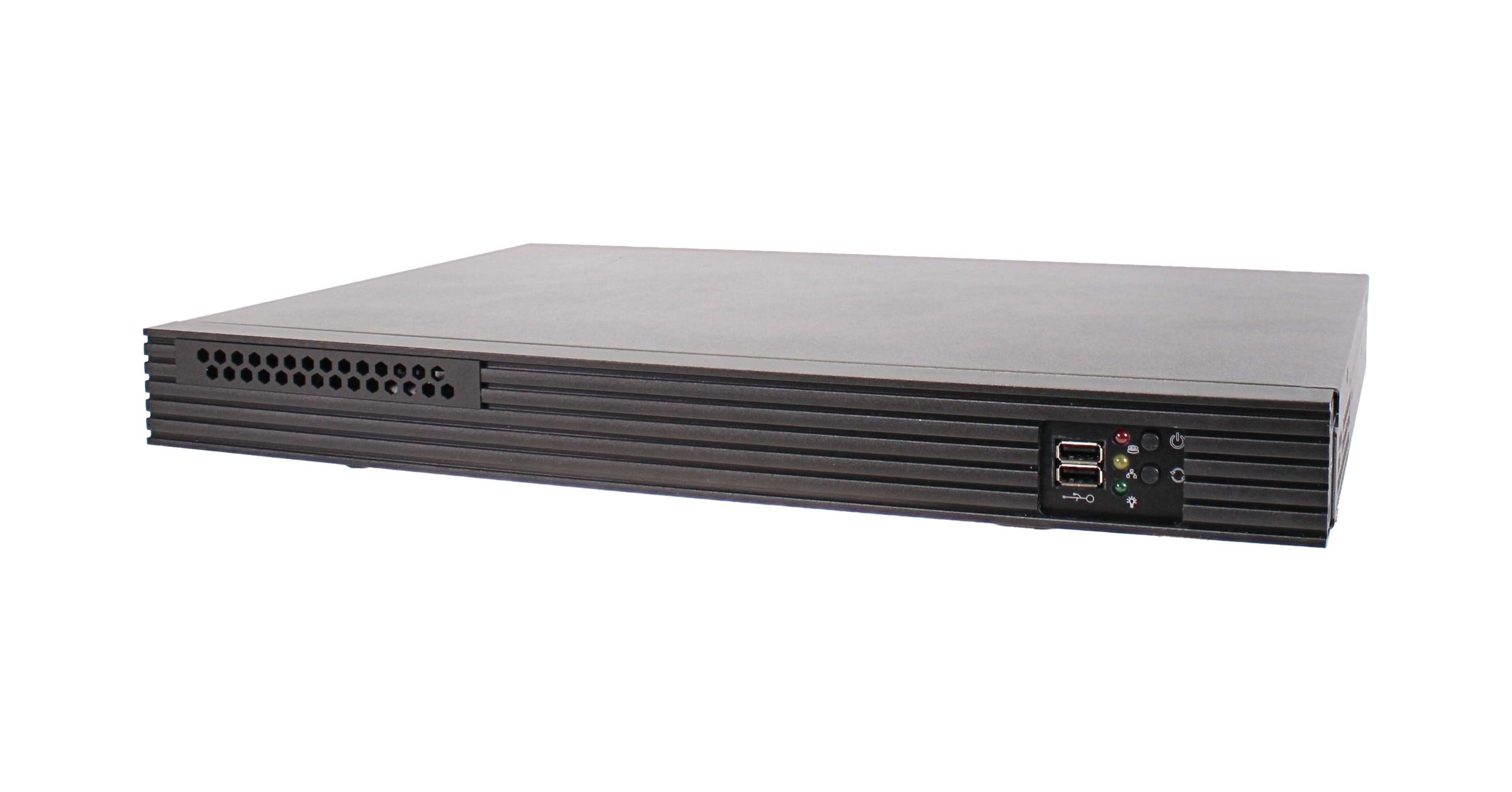

Short Rackmount Workstation 12″ (SRW-12)
A Secure, 1U Short Rackmount CAD Workstation
Benefits
- Designed to allow the most demanding CAD designers to reach maximum productivity.
- Will accommodate up to an NVIDIA RTX A6000 graphics card.
- Flexible build-out options allow for memory, storage, and drives to suit your needs.
- Harden security by locating the computing resources inside a secure data center
- Provides exceptional video and graphics
No matter where you are in your decision making process, we are ready to help you!
Technical Specs
Specifications
CPU
i9-139000 (24C/32T, 2.0GHz up to 5.6GHz, 65W(219W), vPRO)
i7-13700 (16C/24T, 2.1GHz up to 5.2GHz, 65W(219W), vPRO)
i5-13500 (14C/20T, 2.5GHz up to 4.8GHz, 65W(154W), vPRO)
Video
Single Slot No Power: 75W – T1000
Single Slot with Power: 150W – RTX A4000
External Ports
Internal Ports
Network
1GbE Copper
2.5 GbE Copper
PCoIP 1GbE Copper (optional)
10GbE SFP+ (optional)
Fiber option
Memory
Type: DDR4 3200 x 2
Recommended: 32GB Max: 64GB
Storage
Operating System
Windows 10, Windows 11, Linux
Dimensions
1.8″ (H) x 12.1″ (L) x 19″ (W)
1U (12″ deep)
Other
–
Related Documents
For additional support please email: support@clearcube.com
Call: 512-652-3400
*Some locations outside of the US may need to dial the local number listed above to reach the support group
Download the Statement of Volatility
ClearCube Technology zero clients, Belkin KVM/KM switches, Belkin DCUs, fiber transceivers, and fiber media converters use two types of memory to store customer information: volatile (RAM) and non-volatile (NVRAM).
Download the Blade PC VPAT – Voluntary Product Accessibility Template®
Product Model Number: M1032W, M1034W, A6106SLW, A6018E, R3161D, R3162D, R3090D, R3092D
