SRW-C (Short Rackmount CAD Workstation)

A Secure, 1U Short Rackmount CAD Workstation

Benefits

  • Designed to allow the most demanding CAD designers to reach maximum productivity.
  • Will accommodate up to an NVIDIA 6000 Series graphics card.
  • Flexible build-out options allow for memory, storage, and drives to suit your needs.
  • Harden security by locating the computing resources inside a secure data center
  • Provides exceptional video and graphics

Technical Specs

CPU / Processor

Intel 12th or 13th Gen i9-12900/i9-139000

Video

GPU

GPU: Up to NVIDIA 6000 Series

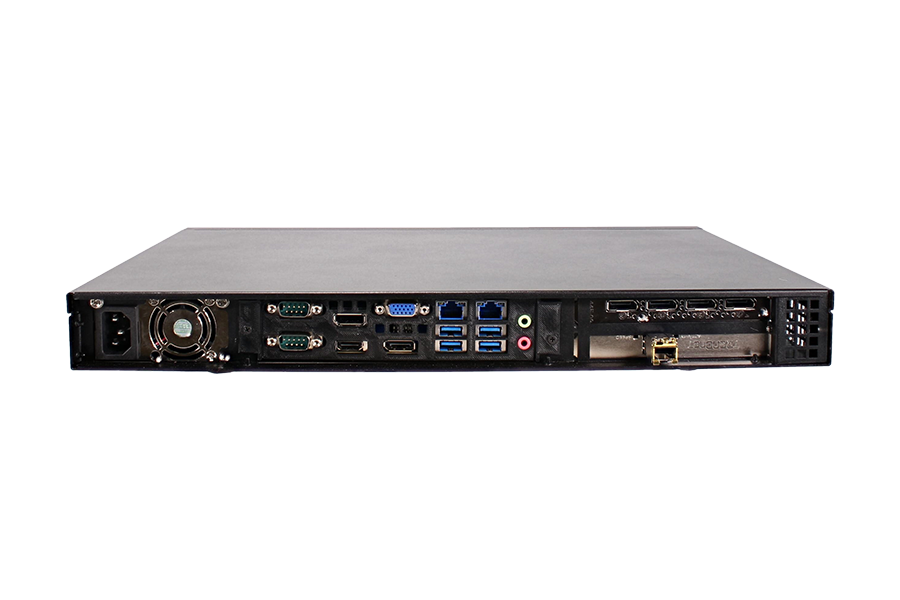

External Ports

2 x RJ45 2.5 Gbps
6 x USB
3 x Onboard Video
2 x 2.5” removable SATA

Internal Ports

USB Header
E Key 2230
B Key
SATA Port

Network

1GbE Copper
2.5 GbE Copper
PCoIP 1GbE Copper (optional)
10GbE SFP+ (optional)
Fiber option

Memory

Type: DDR4 3200 x 2
Recommended: 32GB Max: 64GB

Storage

M key 2280
2 x 2.5” removable SATA

Operating System

Windows 10, Windows 11, Linux

Dimensions

1.8″ (H) x 11″ (L) x 19″ (W)
1U

Rack Density

NA

Other

NA
