Multi Level Secure Switch KVM Solution Net-2

Request a Quote

  • Delivers secure, full quality computing experience over LAN to VMware Horizon desktop and PCoIP Blade PC workstations
  • Extend tightly controlled security profiles from the datacenter to remote desktops
  • Optimized for multiple-security domain environments. This solution saves space and power in one fully integrated device
  • ClientCube provides line-of-sight isolation from the datacenter to the desktop
  • Increases security of physical and data assets

SPECIFICATIONS

Number of Zero Clients
Two
Zero Clients Support
CD1022/24, CD1042/44, CD2022/24, CD5012/14, CD7012/14. CD7012/14, DTi3722, DTi5722, DTi7722
Number of Physically Separated Networks
Two
Keyboard Switching
Yes
Video Switching
Yes
Mouse Switching
Yes
Audio Switching
Yes
Network Type
Fiber or Copper
External I/O Ports Front
Up to 4 USB ports (2.0 or 3.0)
3.5mm Headphone jack × 1
3.5mm Microphone jack × 1
Power button × 1
Number of Displays/Resolution
One @ 2560 × 1600Two @ 1920 × 1200
External I/O Ports Rear
Video connectors × 2 (HDMI or DisplayPort)
USB 3.0 × 2
RJ45 or SFP module × 2
12V DC Power jack × 1
Protection Profile Support
PSS Ver. 3.0
CAC Support
Yes
Remote Control Support
No
Download the ClientCube NET 2 Datasheet

Description

ClearCube® ClientCube Model Net-2

Line-of-sight separation from the data center to the desk NIAP Protection Profile v3.0 KVM

Following in the tradition of purpose-built solutions for Federal and DoD customers, the ClearCube ClientCube NET-2 endpoint consolidates up to two networks (tactical, secret, confidential and unclassified) into a small footprint device at the desktop. ClientCube NET-2 enables users to access multiple computers and networks using a single keyboard, monitor and mouse while maintaining physical network separation to isolated and secure VMware Horizon desktops and PCoIP Blade PC workstations in the data center without compromising user experience or network security at the desktop.

A Compact, All-In-One Multiple Security Level PCoIP Solution

ClientCube NET-2 integrates ClearCube’s secure, stateless endpoint devices with Vertiv’s NIAP approved secure KVM (keyboard-video-mouse) switch to create a multi-network workstation like no other.The integrated Secure KVM features true data path isolation for superior security and data protection for government agencies. A common preventive measures for thwarting attacks, KVM switching devices can securely connect peripheral devices—including audio equipment and large high-resolution displays—to switch quickly among multiple computers and networks with a single keyboard, monitor and mouse. The Secure KVM is fully compatible with legacy and new government systems and is listed and approved to the latest KVM testing standard (NIAP Protection Profile PSS Ver. 3.0).

Integrated Secure KVM

The secure KVM switch is specially designed to prevent peripherals from leaking information and to remain tamper-free during delivery, and features unidirectional data flow that prevents upstream USB intrusion; illuminated port indicators; NUM Lock, CAPS lock and Scroll Lock indicators; and keyboard port locking that maintains user login to selected host networks.

Benefits

  • Delivers secure, full quality computing experience over LAN to VMware Horizon desktop and PCoIP Blade PC workstations
  • Extend tightly controlled security profiles from the data center to remote desktops
  • Optimized for multiple-security domain environments. This solution saves space and power in one fully integrated device
  • ClientCube provides line-of-sight isolation from the data center to the desktop
  • Increases security of physical and data assets

SPECIFICATIONS

Number of Zero Clients
Two
Zero Clients Support
CD1022/24, CD1042/44, CD2022/24, CD5012/14, CD7012/14. CD7012/14, DTi3722, DTi5722, DTi7722
Number of Physically Separated Networks
Two
Keyboard Switching
Yes
Video Switching
Yes
Mouse Switching
Yes
Audio Switching
Yes
Network Type
Fiber or Copper
External I/O Ports Front
Up to 4 USB ports (2.0 or 3.0)
3.5mm Headphone jack × 1
3.5mm Microphone jack × 1
Power button × 1
Number of Displays/Resolution
One @ 2560 × 1600
Two @ 1920 × 1200

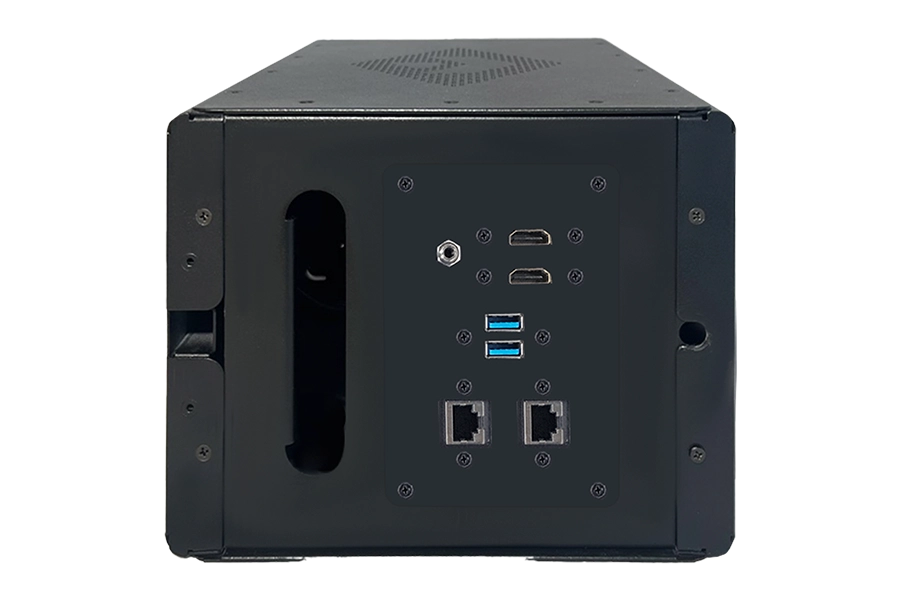

External I/O Ports Rear
Video connectors × 2 (HDMI or DisplayPort)
USB 3.0 × 2
RJ45 or SFP module × 2
12V DC Power jack × 1
Protection Profile Support
PSS Ver. 3.0
CAC Support
Yes
Remote Control Support
No
Download the ClientCube NET 2 Datasheet
