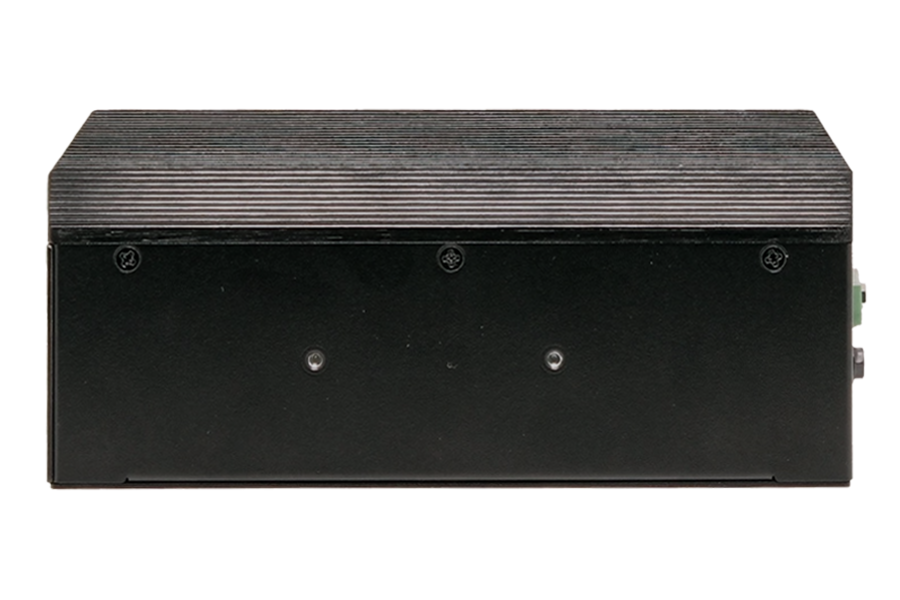

ASUS IoT Back-StraightOn

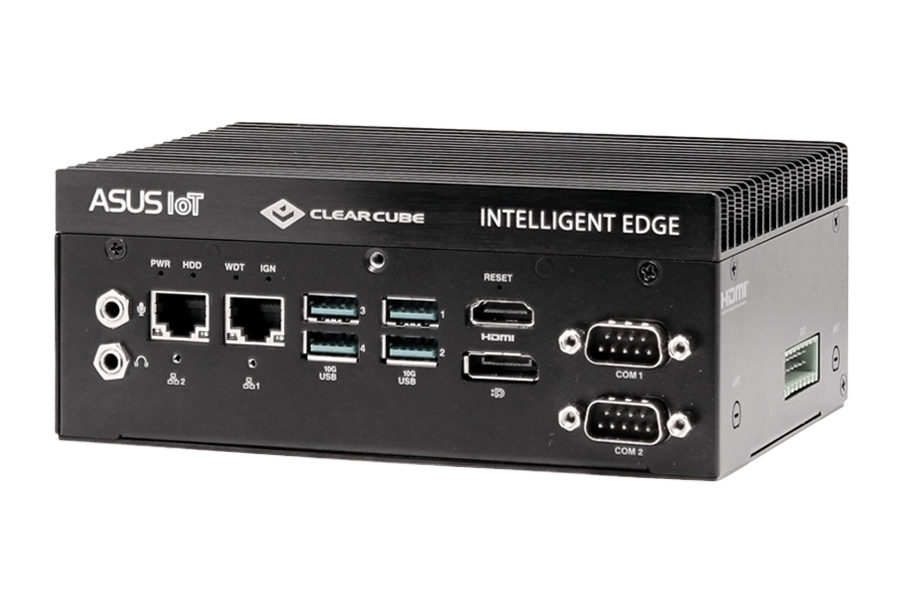

ASUS IoT Front-LeftAngle

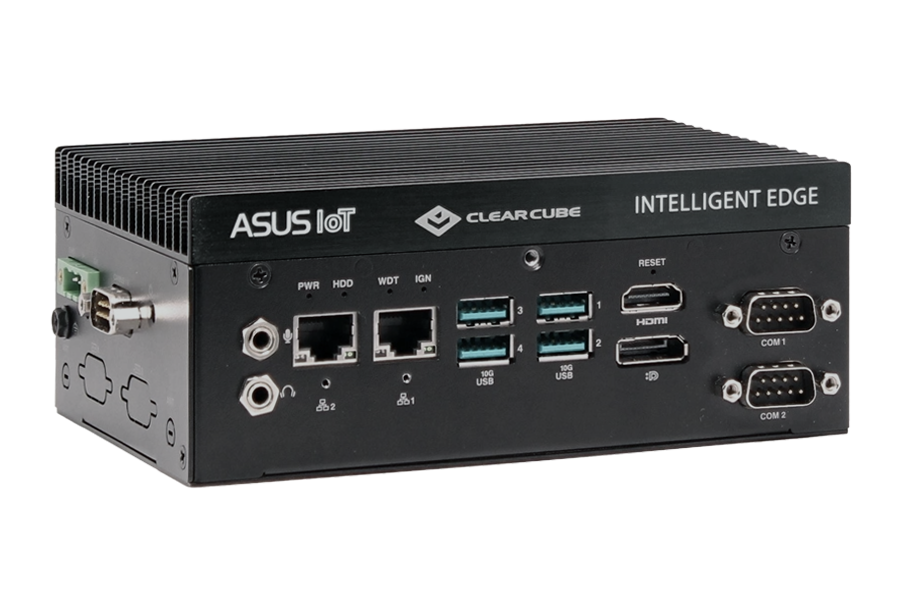

ASUS IoT Front-RightAngle

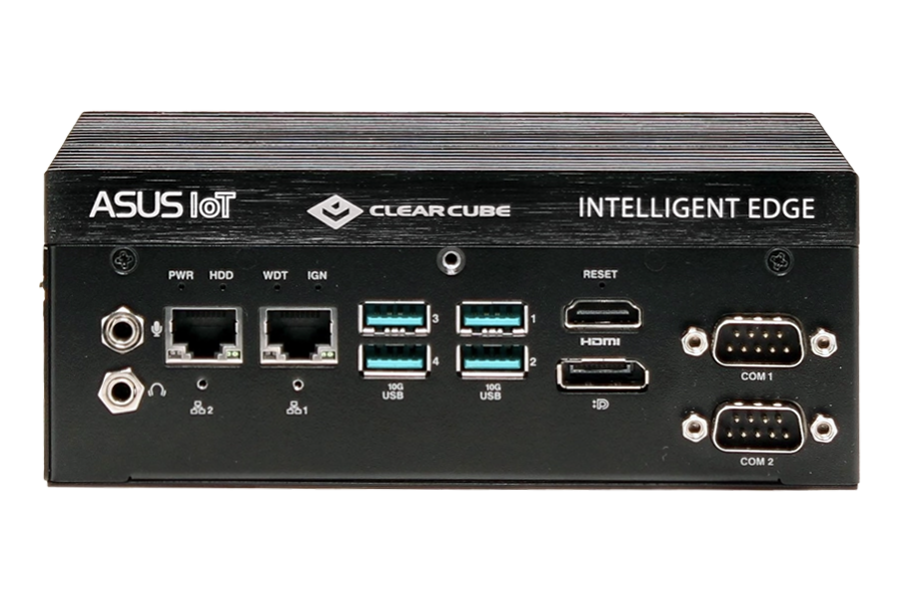

ASUS IoT Front-StraightOn

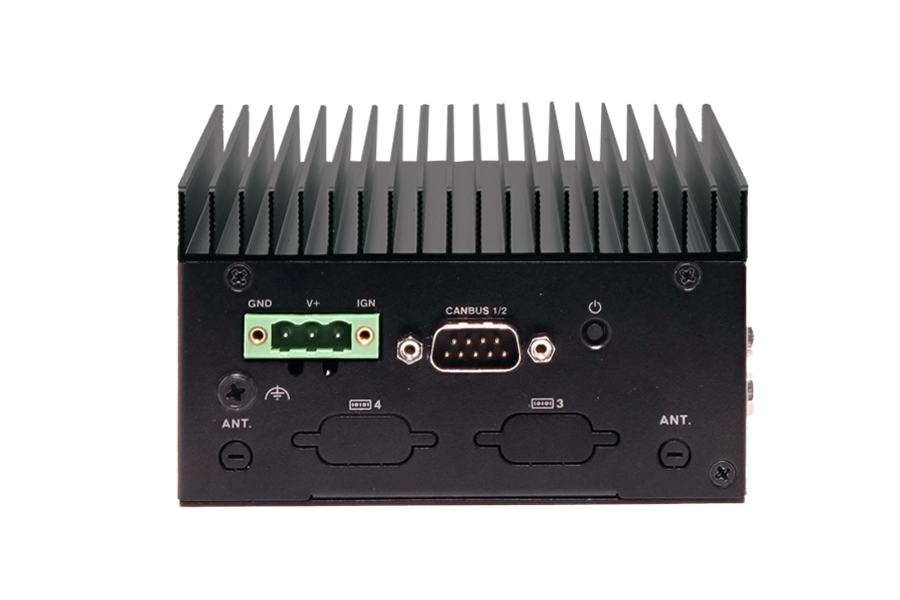

ASUS IoT Side-Left

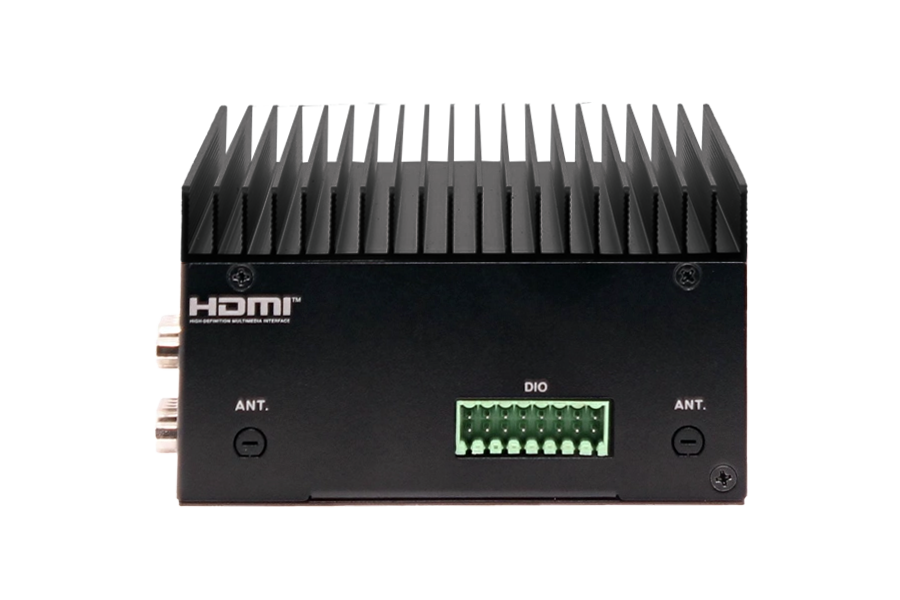

ASUS IoT Side-Right

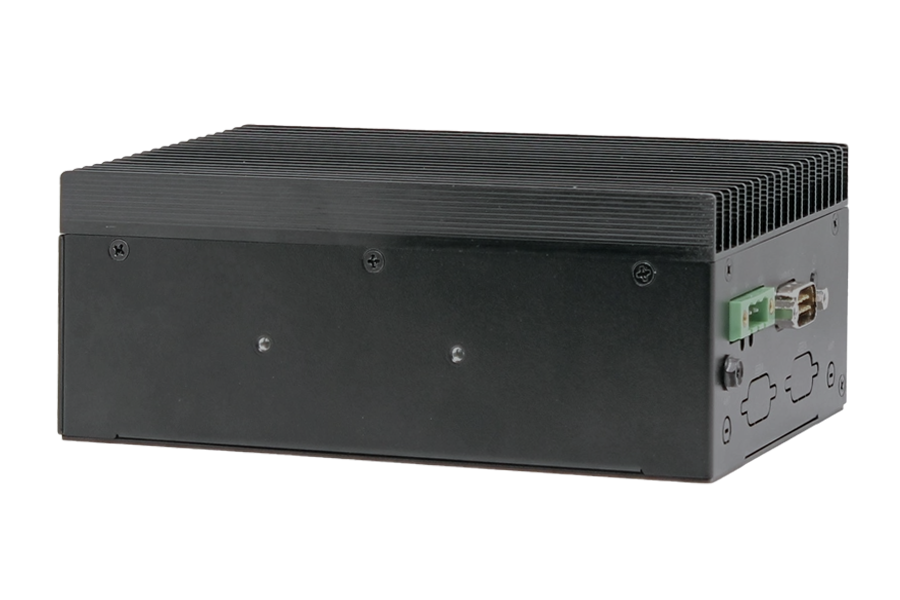

ASUS IoT Back-LeftAngle
View Data Sheet
go to Support
SKU:
PE1000U

No matter where you are in your decision making process.
We are ready to help you!

Schedule a 15-minute consultation call.

High Performance Fanless Industrial Edge Computer

Fanless industrial edge computer with Intel Core Ultra Gen2 U7 265U or U5 235U. Dual 4K, CAN Bus 2.0, RS232/422/485, 2.5Gbps LAN, vPro, TPM 2.0 and optional 5G for edge deployments.

Key Features

  • Fanless & compact — Silent, rugged 2.6″ x 6.8″ x 4.6″ chassis
  • Intel Core Ultra Gen2 — U7 265U or U5 235U, up to 5.3 GHz, 15W TDP
  • Dual 4K output — HDMI 2.0 + DisplayPort 1.2
  • Industrial protocols — 2x RS232/422/485 and 2x CAN Bus 2.0
  • Fast networking — Dual 2.5Gbps LAN, optional WiFi & 5G/LTE
  • Enterprise security — vPro, TPM 2.0 and Secure Boot
  • Ignition power support — Designed for in-vehicle deployment
Technical Specs

CPU / Processor

Intel Core Ultra Gen2 U7 265U (12C/14T, 2.1 GHz up to 2.4 GHz, 15W, vPRO, TPM 2.0, Secure Boot)

Intel Core Ultra Gen2 U5 235U (12C/14T, 5.3 GHz up to 4.9 GHz, 15W, vPRO, TPM 2.0, Secure Boot)



Video

Max Resolution: 2 x 4K
Recommended Resolution: 2 x 4K

GPU

External Ports

1 x HDMI 2.0
1 x DP 1.2
3.5mm Line-in, 3.5mm Line-Out
4 x USB 3.2 (Gen2x1) Type-A
2 x RJ45 2.5Gbps
WiFi (Optional)

2 x RS232/422/485
2 x CAN BUS 2.0 (DB9)
DC 3Pin with Ignition
5G/TE support via M.2 BKey

Internal Ports

M Key 2280 Gen4
E Key 2230 CNVi enabled
B Key 3042/3052 with nano-SIM
1 x SATA

Network

2 x RJ45 2.5Gbps

Memory

Type: DDR5 6400 x 2
Recommended: 2 x 16GB SO-DIMM
Max: 64GB

Storage

2280 M Key(Gen4)
SATA 2.5″

Operating System

Windows 11
Linux

Dimensions

2.6″ (H) x 6.8″ (L) x 4.6″ (W)



6.3″ length without ANT connector

Rack Density

NA

Other

NA
